HD MiniSAS
Applied to computer peripherals, network connection, communication and plug-ins
Site:
Home
HD MiniSAS
Details

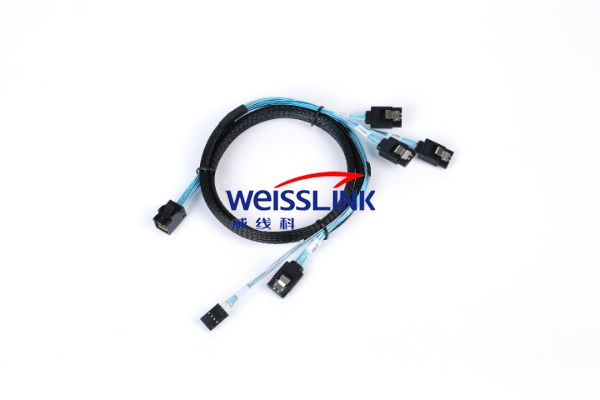

HD MiniSAS 4X
HD MiniSAS is a high speed solution to support SAS3.0 and PCIe3.0 application. It can be applied to server, storage, workstation and so on.
Consult Now
+86-(0)755-27337911
Details
Parameters
1. High density: pitch 0.75mm connector made of 2 PCBs
2. Optional connector: 36pin and 72pin
3. Good SI performance support 12Gbps SAS signal and 8GT/s PCIe signal
Please refer to SAS3.0 and PCIe3.0 specification
